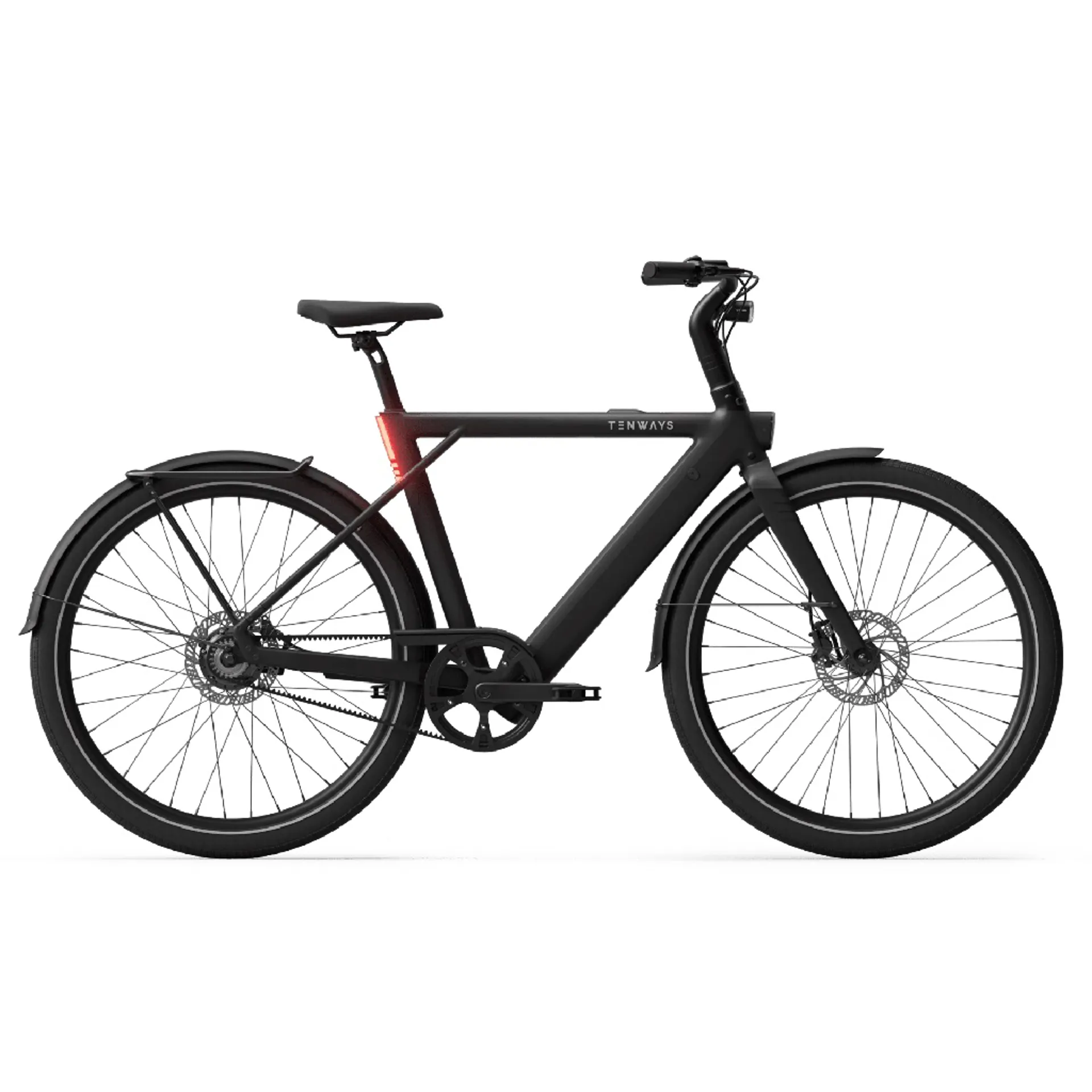

Tenways CGO009 New Edition Urban E Bike Belt Drive
- Smart Connect Module
- Handy Notification Functions
- Striking Geometry
- Gates Carbon Belt Drive
- Magnetic Torque Sensor
- TENWAYS C9 Motor
- Portable Battery
Details You Will Love
Ergonomic and cushioned for lasting comfort and support—wherever the road takes you.

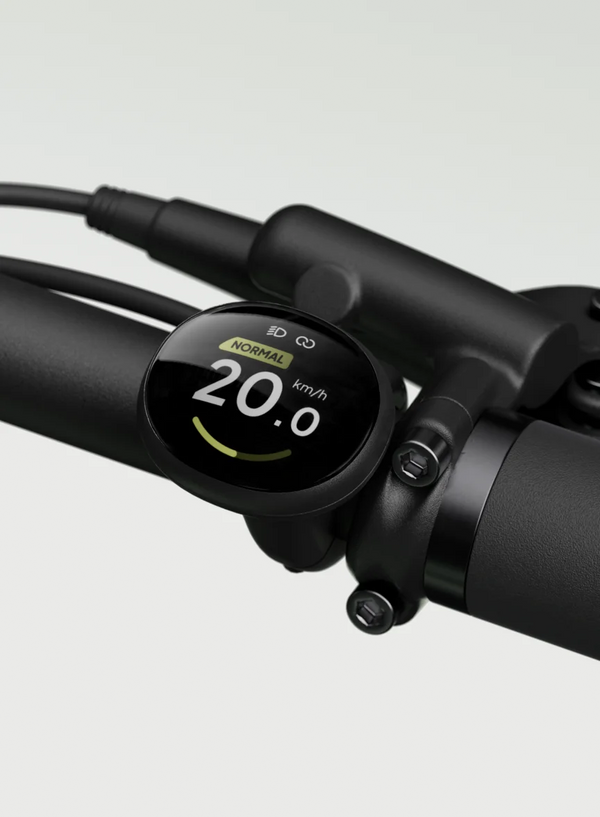

A round, fluidly curved color display that embodies modern elegance and effortless clarity.
TENWAYS Customized Color Display

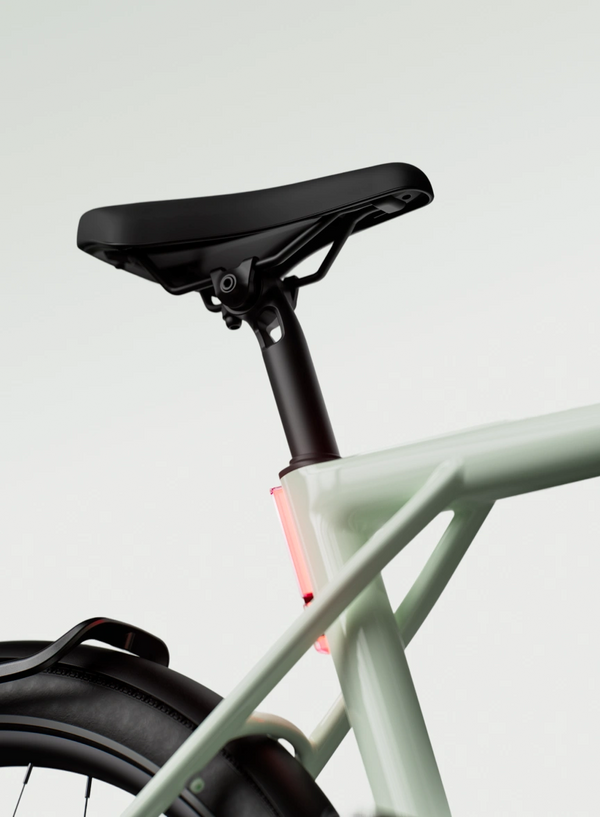

Ergonomic and cushioned for lasting comfort and support—wherever the road takes you.
Selle Royal Saddle

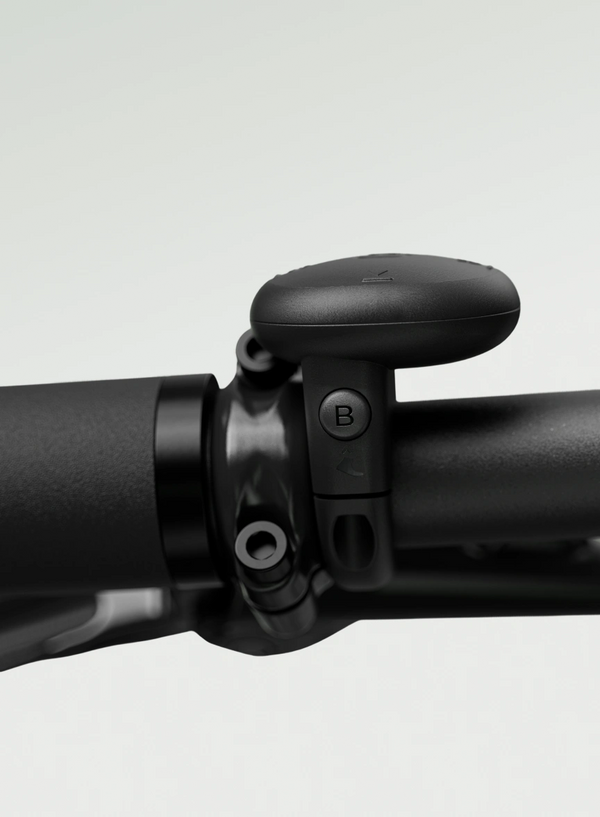

An extra burst of energy at your fingertips. Handy for climbing and quick acceleration.
Power Boost Button

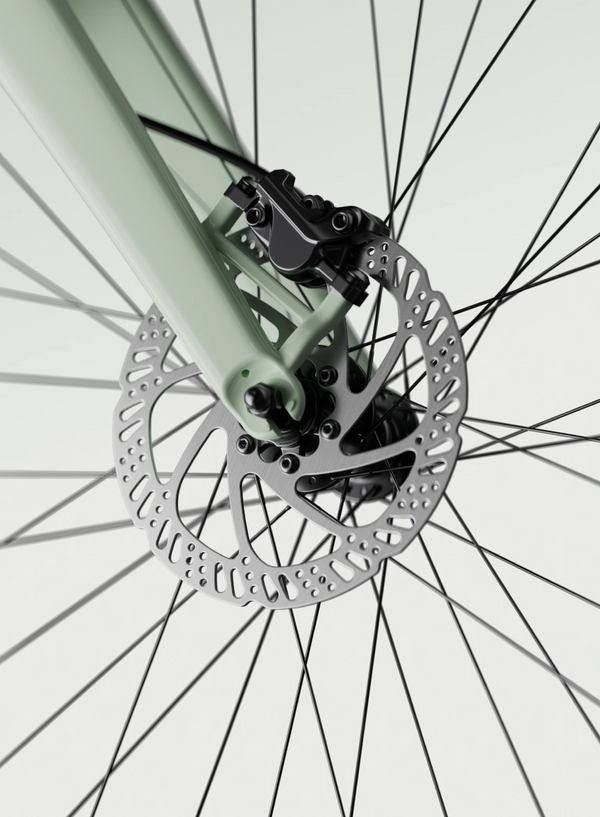

Exceptional stopping power and stability for reliable braking in all weather conditions.
Hydraulic Disc Brakes
Smarter Riding
with the TENWAYS App
Brand: Tenways
Model: CGO009
Motor: TENWAYS C9 Rear Hub Motor (250W Power, 45 Nm max. Torque)
Controller: Vector Sine Wave Controller-Controller
Sensor: Torquesensor
Display: TENWAYS Display with boost function
Battery: 374 Wh (36 V, 10,4 Ah) Lithium-ion battery with LG cells
Light: Conform regulation
Max support: 25 km/h*
Range: up to 85 Kilometer * *The actual power depends on the temperature, road conditions, rider weight, etc.
Suitable for gradient*: Climbs the mountain with ease * * Actual power depends on temperature, road conditions, rider weight, etc.
Frame: Frame aus 6061 Aluminium
Crankset: Gates CDX Crankset
Wheels:
Drivetrain: Singlespeed. Gates CDN Carbon Belt Drive
Brakes: Hydraulic disc brakes
Tyres: Custom Tyres from TENWAYS
Front fork: Front fork aus 6061 Aluminium
Bottom bracket: Fully concealed Bottom bracket
Saddle: Selle Royal Saddle
Weight*: Net weight: 21 kg (without all accessories) Total weight: 23 kg (including all accessories) Max weight: 145 kg *All weight specifications have a tolerance of +/- 3%–5%. The net weight includes the battery but not the accessories. The total weight includes the battery and all accessories.
